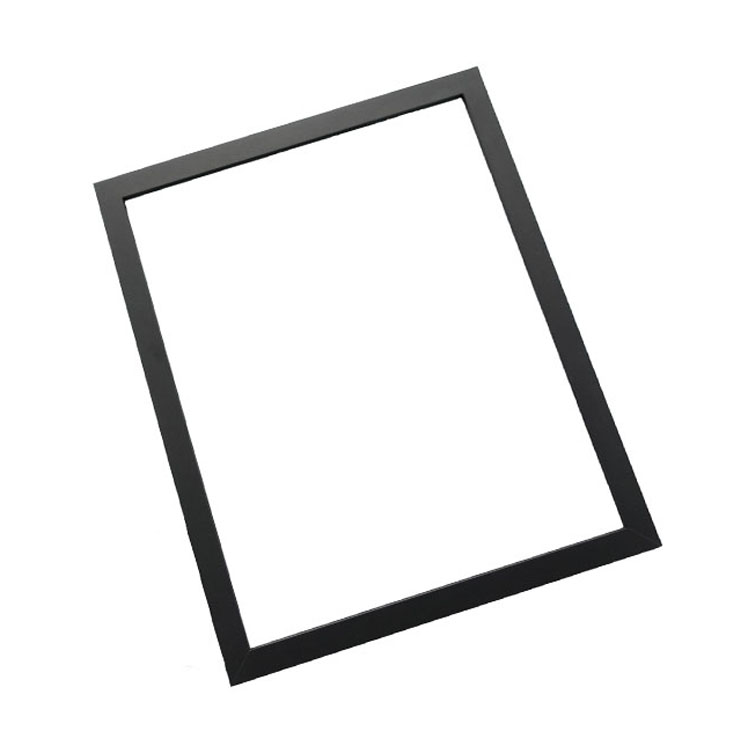

RoHS 3mm Tempered Glass 19 Inch Touch Screen Frame For TV

    Buy cheap RoHS 3mm Tempered Glass 19 Inch Touch Screen Frame For TV from wholesalers

    Buy cheap RoHS 3mm Tempered Glass 19 Inch Touch Screen Frame For TV from wholesalers
    • Buy cheap RoHS 3mm Tempered Glass 19 Inch Touch Screen Frame For TV from wholesalers

    RoHS 3mm Tempered Glass 19 Inch Touch Screen Frame For TV

    Ask Lasest Price
    Brand Name : Master Touch
    Model Number : MST-IR-TFP-19
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000~100000pcs/Month
    Delivery Time : 5-8 work days
    Certification : FC, CE, RoHS
    • Product Details
    • Company Profile

    RoHS 3mm Tempered Glass 19 Inch Touch Screen Frame For TV


    Master Touch 19 Inch Touch Screen Frame for TV with 3mm Tempered Glass


    1. Product Description


    Master Touch IR (Infrared) Touch Frame is a high-end multi-point infrared touch screen technology with perfect combination of tradition and innovation. Our touch screen has the features of fast reaction speed, strong anti-environment light ability, good stability and easy integration; With the function of plug and play and without driver, any non-transparent object can change the infrared light and realize the touch operation which is convenient for people to operate and use the digital life and brings the greatest convenience and interactivity to life.


    2. Basic Specification


    Touch PointDimensionResolution
    1,2,4,6,10 (optional)

    Width: 18mm

    Thickness: 7.5mm

    (including frame and glass)

    32767*32767
    Driver FreeTouch AccuracyTypical Response Time
    HID* compatible<1mm3-10ms
    ESDGlassLight Transmission

    Contact Discharge 6kV;

    Air Discharge 8kV;

    4kV on USB connector pins

    3mm tempered glass≥90% with glass
    Light TransmissionProtocolTouch Activation Force
    ≥90% with glassHIDNo minimum touch pressure required
    Low Power ConsumptionTemperatureHumidity

    Operating ≤1W;

    Standby ≤ 250mW

    Operating Temperature: -20°C~70°C ;

    Storage Temperature: -40°C~85°C

    Operating Humidity: 10%~90%RH (Non-condensing);

    Storage Humidity: 10%~90%RH

    3. Drawing

    Active Area

    (L1*W1)

    Unit: mm

    Mounting Hole

    (L2*W2)

    Unit: mm

    OD

    (L3*W3)

    Unit: mm

    USB Cable Position

    (D2)

    Unit: mm

    Thickness of panel

    Unit: mm

    Thickness of glass

    Unit: mm

    377*302408*321415*3391167.53
    4. Features
    Unibody structure with front IP65;Auto diagnosis;
    Ambient light immunity up to150,000lux;90-pair LED recognizing 6mm objects;
    FCC/CE/RoHS;HID* plug &play with 1-10 touch points
    5. Applications
    6. Details
    7. FAQ
