Multi System 1.1mm ITO Glass Touch Panel Structure ODM OEM

Ask Lasest Price
Brand Name :	Master Touch
Model Number :	MST-TPS-32-ETI
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50000~100000 pieces/Month
Delivery Time :	5-8 days

Add to Cart

Product Details
Company Profile

Multi System 1.1mm ITO Glass Touch Panel Structure ODM OEM

Master Touch Multi-system ITO Glass Sensor Touch Panel Structure

1. Product Description

Master Touch Touch Panel with Structure is to glue the structural parts whose size is the same as the TP's outline dimension and the TP with silicone or two-component glue, so that the two are firmly bonded together. Doing so can increase the overall strength and thus protect the TP to a certain extent.

This TPS product uses G + G Capacitive Touch Panel, which is made of a surface tempered glass and a ensor glass with Pcap technology. Projected Capacitive Technology permits more accurate and flexible operation by etching the conductive layer on the touch screen. GG is suitable for mass production and has better appearance properties, but it has high investment costs and is heavier than film-based panels.

2. Genaral Specification

2.1 Basic Features

Item	Feature	Remarks
Controller	EETI3103-01
Channel	TX: - RX:-	-
Power	5V	USB: 4.7V ~ 6.0V, Typical:5V
Communication	USB	USB: 2.0 Full Speed
Touch points	10	-
O.S.	Windows/ Android/ Linux	plug and play
Power Consumption	1.Active Mode: Max.120mA @ USB Input 5V 2.Idle Mode: 90mA @ USB Input 5V 3.Sleep Mode: less than 1mA @ USB Input 5V

2.2 Mechanical Features

Item	Specification	Unit
Screen Size	32	Inch
Viewing Area	760.6(L)×394.1(W)	mm
Cover lens O.D	762.6(L)×457(W)	mm

2.3 Optical Spec.

Item	Content
V.A. Transparency	≧85%

3. Sensor Spec.

Item			Thickness	Unit
Stacked structure	Cover		4.0	mm
	SCA		0.25
	ITO		1.1
	Sensor Glass
	ITO
Sensor Dimension	OD Size	X	718.3
		Y	416.3

4. Electrical Spec.

Item	Type	Value	Unit	Remarks
Operating Temperature	-	-20 ~ +80	℃	Humidity 20%~85% RH
Storage Temperature	-	-30 ~ +80	℃	Humidity 20%~85% RH
ESD Requirement	ESD air requirement	±8	KV	Air
ESD Requirement	ESD contact requirement	±6	KV	Touch

5. Test

Item		Specification	Result
Cover lens	Ball Drop	200g ± 2g 35cm	One drop test on each of the 5 selected points, No damage
	Hardness	Pencil: 6H Pressure: 1N/45°	Hardness ≧ 6H
	Warpage	By Gauge	Warpage 0.1% ≦ Length *
FPC/COF	Bending	Bending range0-180° 30times Electrical Function ok	-

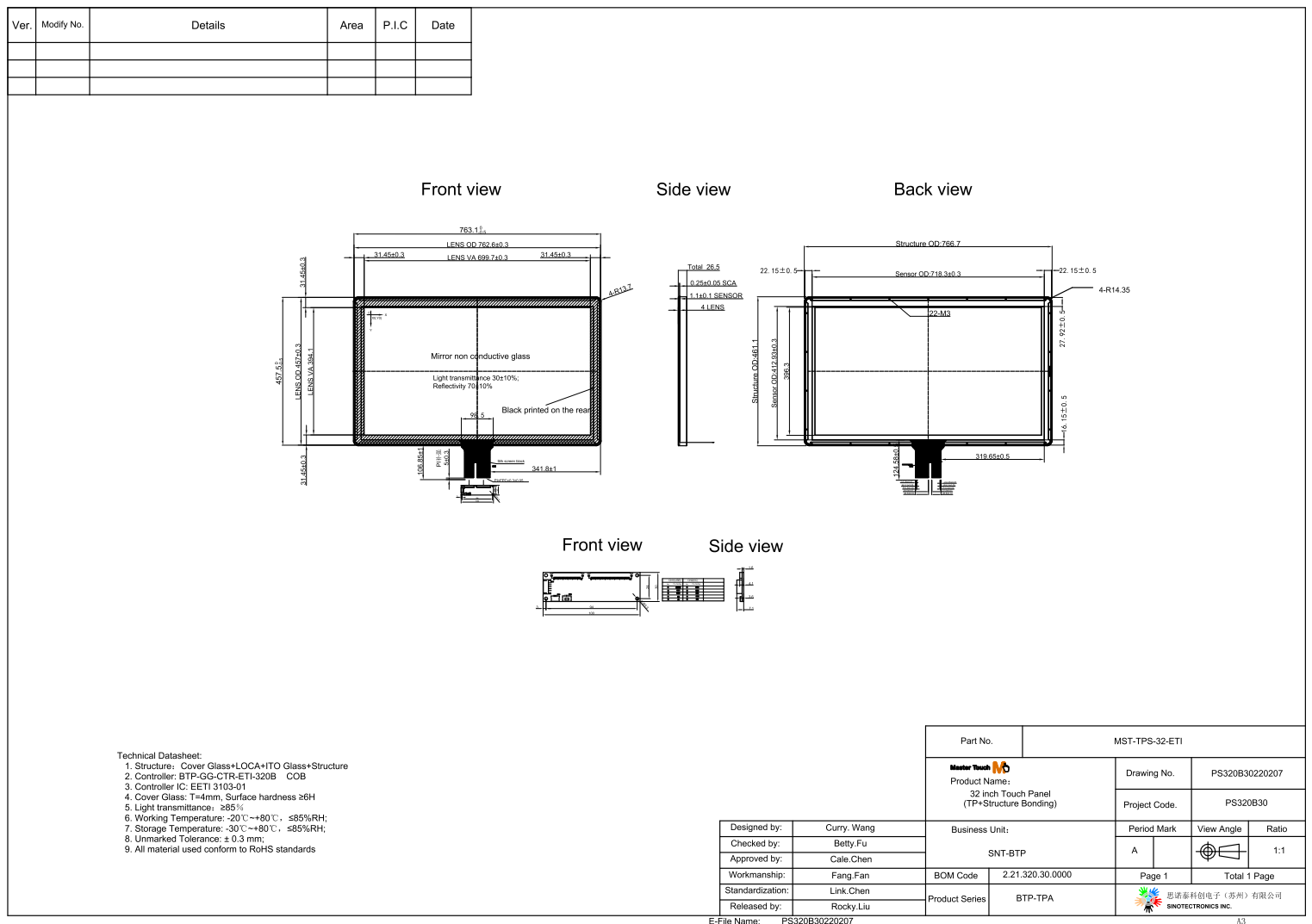

6. Drawing

7. Details

8. FAQ
