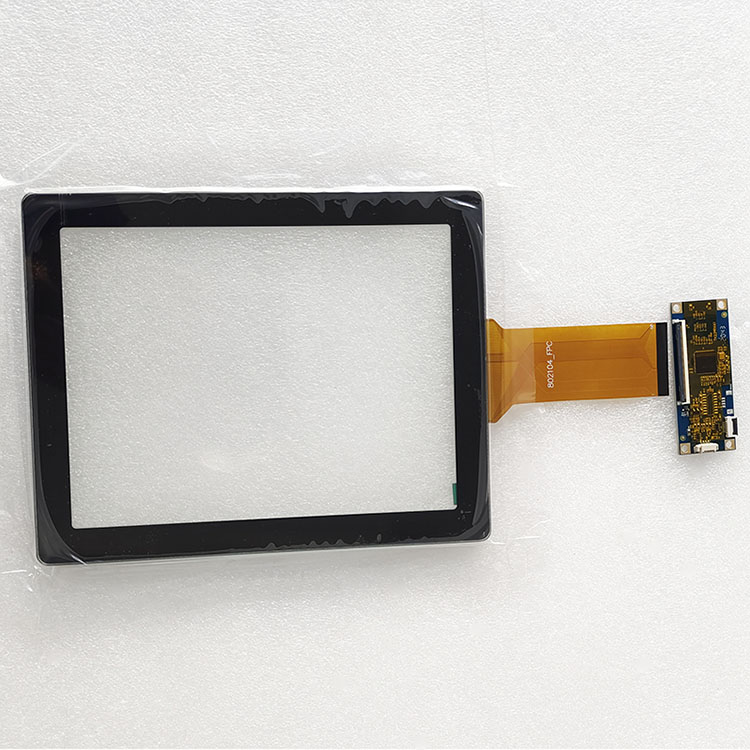

Master Touch 5.5 Inch Minisize Short Side FPC GFF Touch Panel Applied to Watch

1. Product Description

A touch screen is a display device that allows the user to interact with a computer using their finger or stylus. They're a useful alternative to a mouse or keyboard for navigating a GUI (graphical user interface). Touch screens are used on a variety of devices, such as cash registers, and information Kiosks. And this 5.5 inch minisize touch panel is commonly used to touch screen display of electrical appliance like coffeemaker, smartphone, etc.

2. Module Specification

2.1 Basic Information

Item	Specification	Unit
Screen Size	5.5	Inch
Viewing Area	67.64(L)×120.56(W)	mm
Cover lens O.D	80.5(L)×145.56(W)	mm

2.3 Optical Features

Item		Specification
Transparency	Viewing Area	≧85%

3. Sensor Specification

Item			Specification	Unit
Stacked structure	Cover		1.1	mm
	Film Sensor		0.4	mm
Sensor Dimension	OD Size	X	79.9	mm
		Y	144.96	mm

4. Electrical Specification

Item	Type	Value	Unit	Remarks
Operating Temperature	-	-20 ~ +80	℃	Humidity 20%~85% RH
Storage Temperature	-	-30 ~ +80	℃	Humidity 20%~85% RH
ESD Requirement	ESD air requirement	±8	KV	Air
	ESD contact requirement	±6	KV	Touch

5. Function Test

5.1 Inspection methods and conditions

Connect jigs (Supplier provide test jigs and test software) to a computer; test touch function of products in normal electrical characteristics.

5.2 Inspection standards

Don't allow any function abnormalities.

6. Drawing

7. Details

8. Use Cautions

8.1 Storage Cautions

Storage products must according to the temperature and humidity of product specification and do not accept direct sunlight or heavy weight.

8.2 Move Cautions

Must maintain clear clarity of sample, so please wear fingerstalls or gloves before you contact product. Gloves and mask will have stains and hold product around please when you hold the product. Avoid causing the lead loosing, please don't take the lead when you take out the product.

8.3 Combination Install Cautions

1. Don't put the extra tension to the product. Because the down-lead connection uses the hot pressing combination, do not use extra tension.
2. Installation combined, please don't pull FPC heavily, because pull heavily will make the FPC separated from product.
3. Please don't paste or install other items on the FPC. Such as: pasting a layer FILM or metal plate on the FPC, Because these add-ons will impose an extra pressure on the top of FPC, thus leading to the inner side of FPC become flexible.
4. If there is an aeration slot, when you design the product structure you need notice accessories of a product, they can’t have any liquid and powder.
5. In order not to make the T/P surface pressure, so the distance between the cabinet and our company’s T/P combination clearance shall be maintained 0.2mm-0.5mm.
6. As it will make serious damage on the transparent electrodes to operate in the area of the other than the drive area, we suggest that the design cabinet shall cover the edge of thedrive area for avoiding operating outside the area which would reduce machine life.

8.4 Operation Cautions

1. Do not use sharp objects touch. Please with finger or conductive pen touch
2. After long-term use, please use alcohol to remove product surface uncleanness.
