    8.7mm Thick 26 Inch 12 Points Infrared Touch Frame For TV


    Master Touch 26 Inch Infrared Touch Screen Technology 12 Points Touch Frame


    1. Product Description


    MST 26 inch infrared touch frame is a touch device that adopts the principle of infrared touch sensing technology. You can add an infrared frame to the edge of any flat screen, curved screen, cylindrical screen, etc., to realize multi-touch, writing, graffiti, interaction, which can make the presentation more vivid and intuitive, and the audience can understand it more deeply.

    2. Basic Specification


    2.1 Touch Panel


    Size26''
    Dimension19mm width (with frame.without glass);
    24-52” with 8.7mm thickness, 55”-110” with 9.5mm thickess
    Number of Touch Points2, 4, 6, 10, 12, 16, 32, 40(optional)
    Minimum Touch Object5mm
    Touch Activation ForceNo minimum touch pressure required
    Touch DurabilityUnlimited
    Resolution32768*32768
    Driver FreeHID* compatible, up to 40 touch points
    Linearity Deviation±1mm
    Fault ToleranceWorkable even 75% sensors are damaged
    Frames per SecondUp to 450 fps
    Typical Response Time3-10ms
    Light Transmission100% without glass
    Operating SystemsWindows®7, Windows®8,Windows®10, Vista, XP, Mac® OS, Linux, Android
    ProtocolsHID, TUIO, Flash
    Re-developmentProvide free SDK, support C/C++, C#, Java etc.
    Warranty2 years limited warranty on parts and labor
    2.2 Electrical Characteristics
    Power SupplySingle USB Connection
    Low Power ConsumptionOperating ≤2W, Stand By ≤ 250mW
    ESDPer EN61000-4-21995; Level 4
    Contact Discharge 8kV,
    Air Discharge 15kV
    15kV on USB Connector pins
    2.3 Environment Characteristics
    TemperatureOperating Temperature: -20°C~70°C
    Storage Temperature: -40°C~85°C
    HumidityOperating Humidity: 10%~90%RH(Non-condensing)
    Storage Humidity: 10%~90%RH
    CertificationFC, CE, RoHS

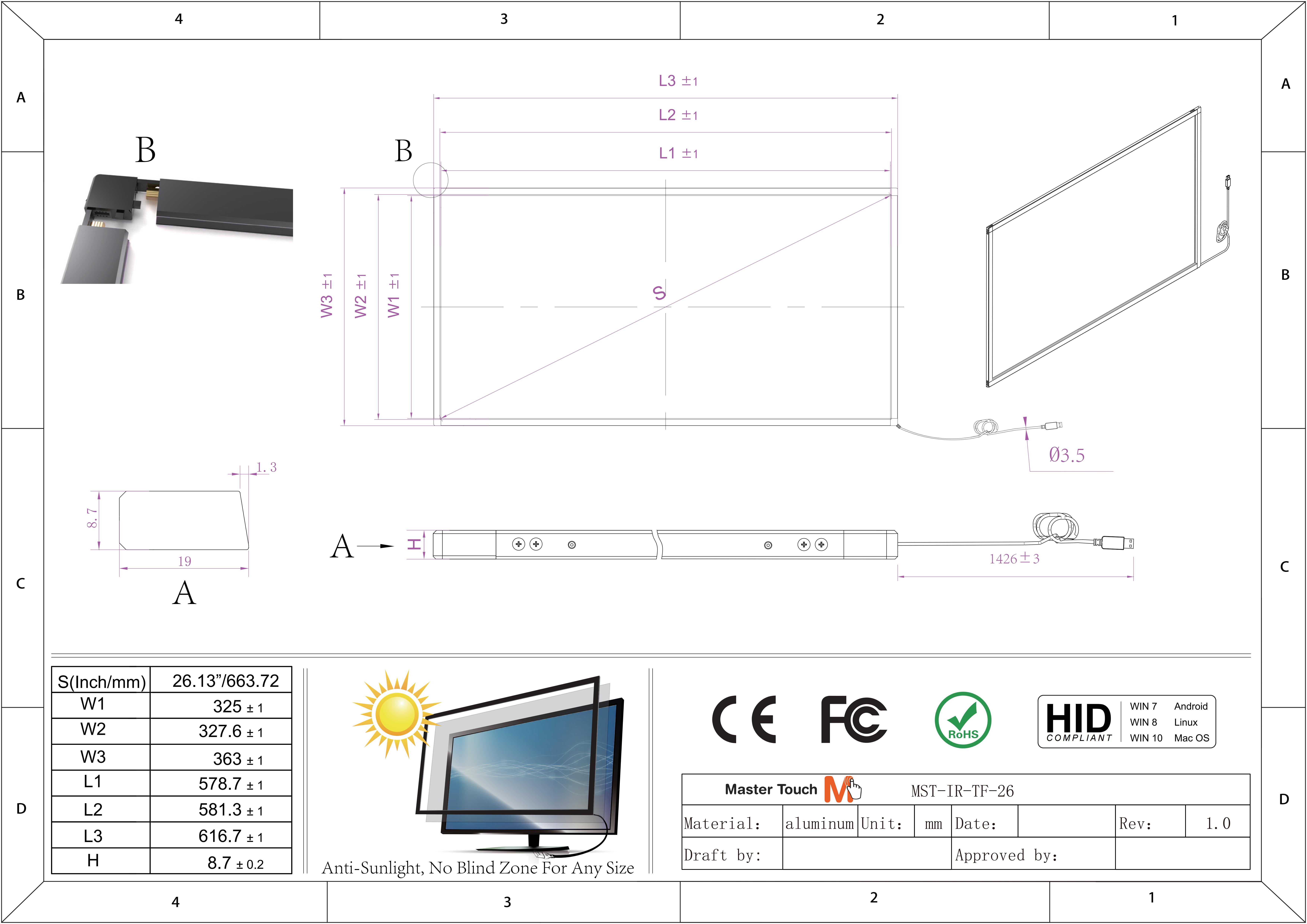

    3. Drawing
    4. Warranty
    *HID compatible is available under Windows, Linux and Android OS. For Windows XP and most other platforms that do not support multi-touch, a mouse HID protocol is provided.
    Warranty for MST multi-touch IR Touch Frame series excludes coverage for damage resulting from accident, liquid damage, disassembly, unauthorized service and unauthorized modifications.
    5. Applications
    6. Details
    7. FAQ
