9.5mm 60 Inch HID Plug Play Infrared Touch Frame For Exhibitions

Ask Lasest Price
Brand Name :	Master Touch
Model Number :	MST-IR-TF-60
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50000~100000pcs/Month
Delivery Time :	5-8 work days
Certification :	FC, CE, RoHS

Add to Cart

Product Details
Company Profile

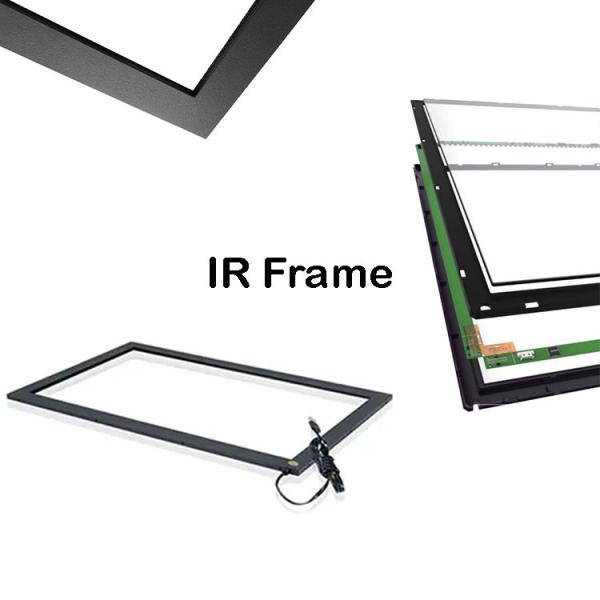

9.5mm 60 Inch HID Plug Play Infrared Touch Frame For Exhibitions

60 Inch HID* Plug & Play Driver Free Capability Infrared Touch Frame for Exhibitions

1. Product Description

Master Touch Infrared touch frame (15-23.6'' with glass; 24-98'' without glass) has following strengths: highest image clarity and light transmission of all touch technologies; unlimited "touch-life"; impervious to surface scratches; multi-touch (two or more touch points); palm rejection capability.

2. Basic Specification

2.1 Touch Panel

Size	60''
Dimension	19mm width (with frame.without glass); 24-52” with 8.7mm thickness, 55”-110” with 9.5mm thickess
Number of Touch Points	2, 4, 6, 10, 12, 16, 32, 40(optional)
Minimum Touch Object	5mm
Touch Activation Force	No minimum touch pressure required
Touch Durability	Unlimited
Resolution	32768*32768
Driver Free	HID* compatible, up to 40 touch points
Linearity Deviation	±1mm
Fault Tolerance	Workable even 75% sensors are damaged
Frames per Second	Up to 450 fps
Typical Response Time	3-10ms
Light Transmission	100% without glass
Operating Systems	Windows®7, Windows®8,Windows®10, Vista, XP, Mac® OS, Linux, Android
Protocols	HID, TUIO, Flash
Re-development	Provide free SDK, support C/C++, C#, Java etc.
Warranty	2 years limited warranty on parts and labor

2.2 Electrical Characteristics

Power Supply	Single USB Connection
Low Power Consumption	Operating ≤2W, Stand By ≤ 250mW
ESD	Per EN61000-4-21995; Level 4 Contact Discharge 8kV, Air Discharge 15kV 15kV on USB Connector pins

2.3 Environment Characteristics

Temperature	Operating Temperature: -20°C~70°C Storage Temperature: -40°C~85°C

Humidity	Operating Humidity: 10%~90%RH(Non-condensing) Storage Humidity: 10%~90%RH

Certification	FC, CE, RoHS

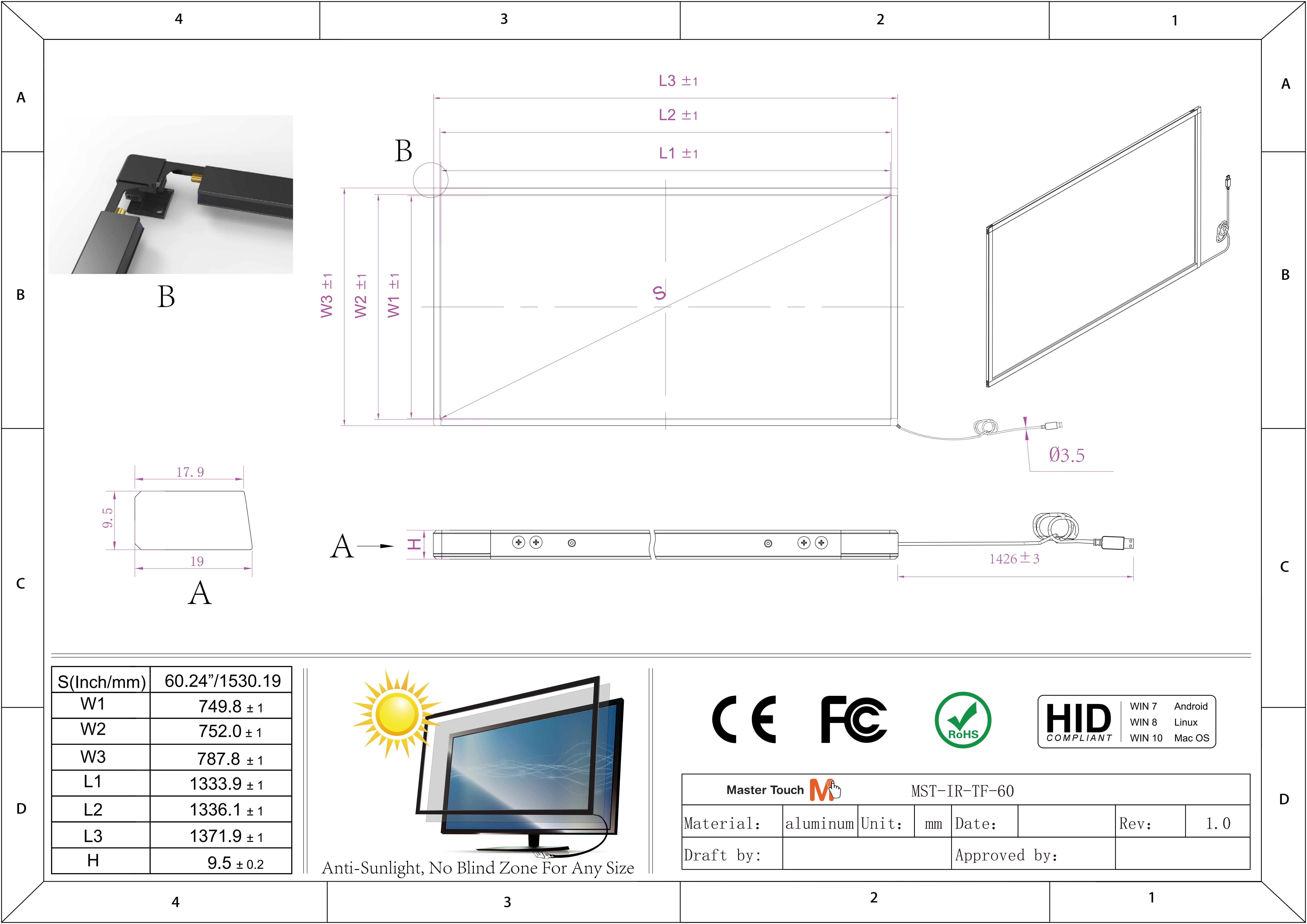

3. Drawing

4. Advantages

Economical option – compared to other touch screens, the cost of IR touch screens is relatively cheap in large size.
Better display – without other substance between the LCD and overlay, IR touch screens offer the best light transmission, so they can render more vivid images without color and brightness loss.
Better writing experience – its overlay is often a piece of tempered glass, it is smooth to write on it.
Short response time – commonly less than 10ms, IR touch screens localized touch events by detecting light interruption, so they are accurate and quick to respond with actions.

5. Applications

6. Details

7. FAQ
