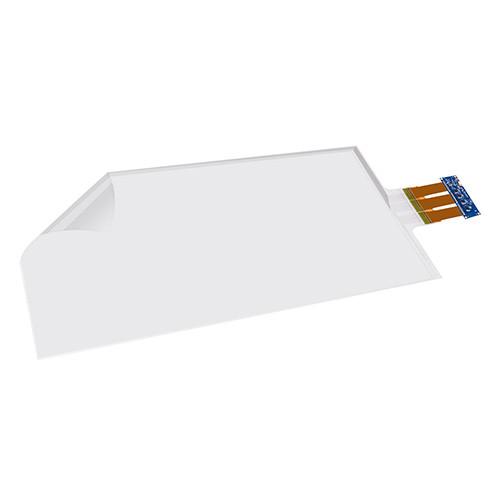

0.5W 39'' Plug N Play Touch Foil Screen PET Film Adjustable Points Capacitive Touch Foil

    Buy cheap 0.5W 39'' Plug N Play Touch Foil Screen PET Film Adjustable Points Capacitive Touch Foil from wholesalers

    Buy cheap 0.5W 39'' Plug N Play Touch Foil Screen PET Film Adjustable Points Capacitive Touch Foil from wholesalers
    • Buy cheap 0.5W 39'' Plug N Play Touch Foil Screen PET Film Adjustable Points Capacitive Touch Foil from wholesalers

    0.5W 39'' Plug N Play Touch Foil Screen PET Film Adjustable Points Capacitive Touch Foil

    Ask Lasest Price
    Brand Name : Master Touch
    Model Number : MST-MCW-TFS-39-STA
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000~100000pcs/month
    Delivery Time : 5-8days
    Certification : RoHS, CB, etc.
    • Product Details
    • Company Profile

    0.5W 39'' Plug N Play Touch Foil Screen PET Film Adjustable Points Capacitive Touch Foil


    Master Touch PET Film Adjustable Points 39 Inch Plug-n-play Touch Foil Screen


    1. Product Description


    MST Touch Foil Screen, with Projected Capacitive Touch (PCT) technology, allows more accurate and flexible operation, by etching the conductive layer. An X-Y grid is formed either by etching one layer to form a grid pattern of electrodes, or by etching two separate, parallel layers of conductive material with perpendicular lines or tracks to form the grid; comparable to the pixel grid found in many liquid crystal displays (LCD).


    2. Technical Datasheet


    Part No.:MST-MCW-TFS-39-STA
    BOM Code:1.11.390.01.0000
    Project Code:M390S
    Structure:Film+Micro Copper Wire+Film
    Copper Wire Diameter:15 microns
    Base Material:PET Film
    Controller IC:STA
    Driver Type:Driver-free, plug-n-play
    Communication Interface:USB2.0/3.0
    Working Voltage:5V
    Standard USB Cable Length:1,500mm
    Thru-Glass Capability:Max. 10mm
    Screen Ratio:16:9
    Foil Size:897.73*513.90mm
    Active Area:863.38*485.65mm
    Controller Size:120*53mm
    FPC direction:Short side
    Light Transmittance≧89%
    Lamination Method:Wet Lamination (OCA)
    Lamination Substrate:Glass/Acrylic/PMMA or other non-metallic material
    Inductive methodImproved projected capacitive technology
    Touch accuracy±1mm
    Touch Points1~20 points (adjustable)
    Calibration methodAutomatic
    Response time<10ms
    Frame scan frequency120FPS
    Lifetime9 Years
    Temperature Range-15℃ to + 75℃
    Working Environment0~ 95%RH(Unaffected by condensation)
    OS compatibilityWindows XP ,Windows 7,Windows 8, Windows10 (32/64)
    MAC OS X Lion
    Linux (Kernel version above 3.8)
    Above Android 4.0 (Kernel version above 3.1)
    EMCEN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
    Power Consumption<0.5W
    *This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

    3. Drawing



    4. Details



    5. Advantages of MST Touch Film


    1. Light in Transportation8. Work with projection film
    2. Easy DIY Lamination9. Cost-effectiveness
    3. Smaller gap lamination10. MOQ (Minimum Order Quantity)/Unlimited Quantity
    4. Water-proof function (ST Series) Water-proof, Dust-proof, Vandal proof11. Flat Design; Narrow Bezel; Attractive Appearance
    5. Thick glass penetration (Max. 10-15mm)12. Outdoor Application
    6. Lowest surface resistance13. Customized size Varies from 2 to 150 inch
    7. Big size capacitive touch requests: up to: 4.2*1.35m (L*H)14. Long life for both industrial and consuming level products application

    6. Application


    Interactive Shopping WindowOutdoor Digital Signage
    Industrial Touch PanelInteractive Black/White Board

    7. How is a touch foil made?


    8. How does the touch foil work?



    Touch Foil without touch: Voltage is even;

    Touch with finger: Voltage will increase.



    9. FAQ
