EN61000-6-1 PCT 40 Inch Touch Screen Film STA Projected Capacitive Touch Film

Ask Lasest Price
Brand Name :	Master Touch
Model Number :	MST-MCW-TFS-40-STA
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50000~100000pcs/month
Delivery Time :	5-8days

Add to Cart

Product Details
Company Profile

EN61000-6-1 PCT 40 Inch Touch Screen Film STA Projected Capacitive Touch Film

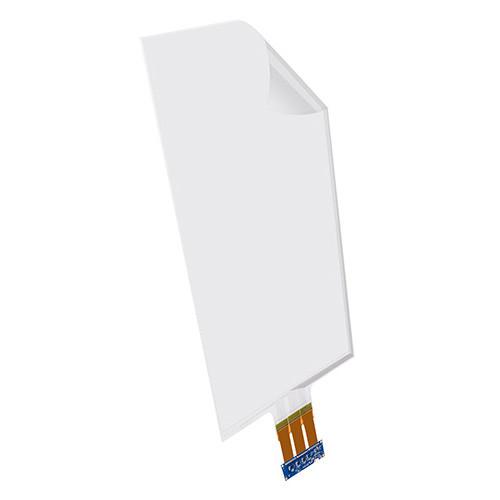

Master Touch 40 Inch Improved Projected Capacitive Technology Touch Screen Film

1. Product Description

MST Touch Foil Screen, with Projected Capacitive Touch (PCT) technology, allows more accurate and flexible operation, by etching the conductive layer. An X-Y grid is formed either by etching one layer to form a grid pattern of electrodes, or by etching two separate, parallel layers of conductive material with perpendicular lines or tracks to form the grid; comparable to the pixel grid found in many liquid crystal displays (LCD).

2. Technical Datasheet

Part No.:	MST-MCW-TFS-40-STA
BOM Code:	1.11.400.01.0000
Project Code:	M400S
Structure:	Film+Micro Copper Wire+Film
Copper Wire Diameter:	15 microns
Base Material:	PET Film
Controller IC:	STA
Driver Type:	Driver-free, plug-n-play
Communication Interface:	USB2.0/3.0
Working Voltage:	5V
Standard USB Cable Length:	1,500mm
Thru-Glass Capability:	Max. 10mm
Screen Ratio:	16:9
Foil Size:	919.87*526.36mm
Active Area:	885.52*498.11mm
Controller Size:	120*53mm
FPC direction:	Short side
Light Transmittance	≧89%
Lamination Method:	Wet Lamination (OCA)
Lamination Substrate:	Glass/Acrylic/PMMA or other non-metallic material
Inductive method	Improved projected capacitive technology
Touch accuracy	±1mm
Touch Points	1~20 points (adjustable)
Calibration method	Automatic
Response time	<10ms
Frame scan frequency	120FPS
Lifetime	9 Years
Temperature Range	-15℃ to + 75℃
Working Environment	0~ 95%RH(Unaffected by condensation)
OS compatibility	Windows XP ,Windows 7,Windows 8, Windows10 (32/64)
	MAC OS X Lion
	Linux (Kernel version above 3.8)
	Above Android 4.0 (Kernel version above 3.1)
EMC	EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Power Consumption	<0.5W
*This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

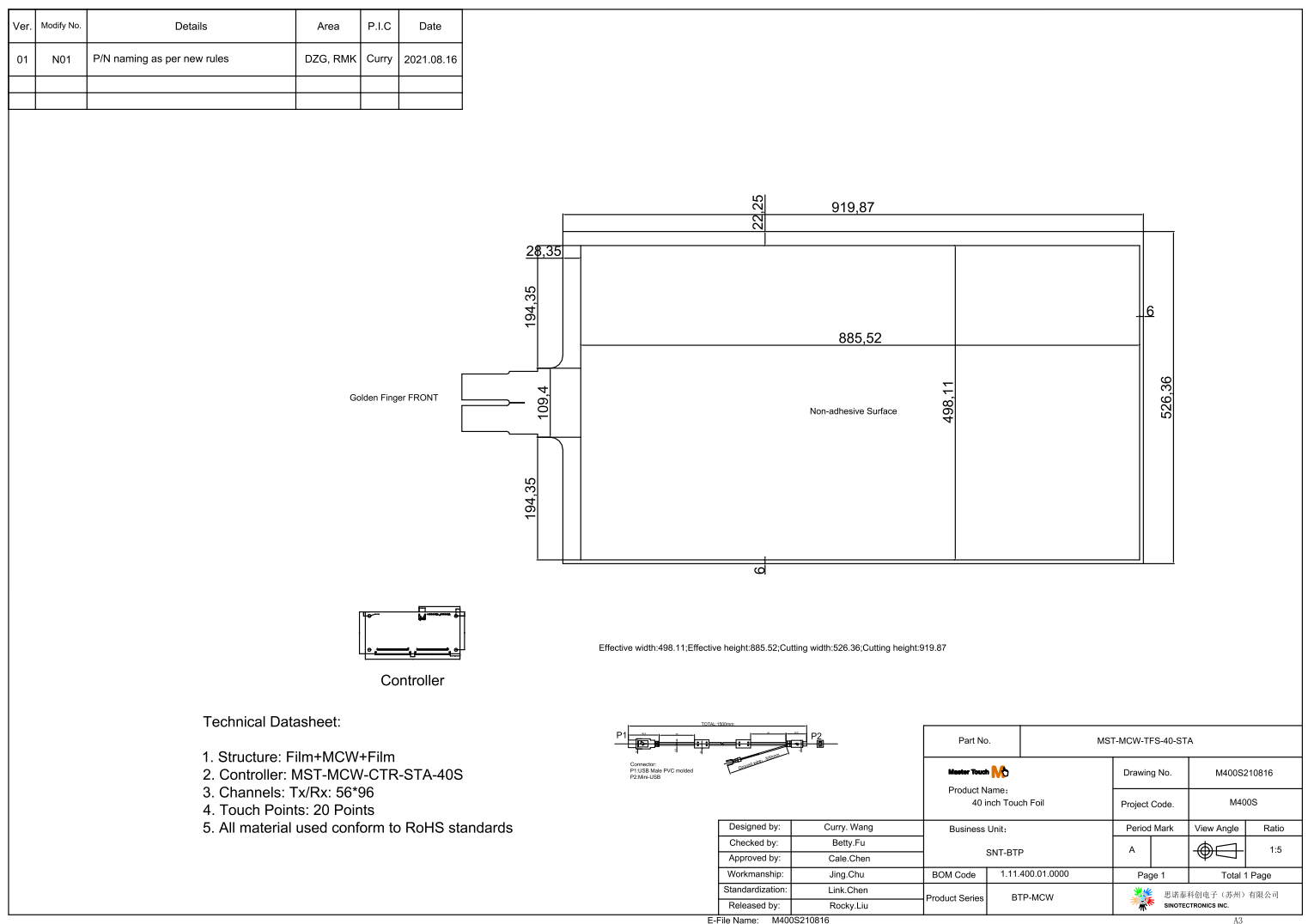

3. Drawing

4. Details

5. Application

Interactive Shopping Window, Outdoor Digital Signage,

Industrial Touch Panel, Interactive Black/White Board, etc.

6. Basic User Guide

① Environment: Comparative Cleanroom
② Lamination Material Choose: Clean and flat
③ Pre-test before Lamination
④ Tools used: Sprayer, Squeezee, etc,

⑤ Direction: Center to side
⑥ Dry and installation:
⑦ Test and calibration

7. FAQ
