Anti Corrosion 55 Inch Anti Glare GG Touch Panel EETI80H100 Controller

Ask Lasest Price
Brand Name :	Master Touch
Model Number :	MST-GG-TPB-55-ETI
Price :	$230-245/piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50000~100000pcs/Month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Anti Corrosion 55 Inch Anti Glare GG Touch Panel EETI80H100 Controller

55 Inch Anti-glare Treatment EETI80H100 Controller G Sensor Touch Panel

1. Product Description

Master Touch 55 inch capacitive industrial touch screen panel product belongs to our standard USB interface product, compatible with various common operation systems, black silk screen printing around, direct drive-free, can save some pre-development time. It is more suitable for the whole machine products mounted by flat assemble way. G+G structure has a long sustainable supply, and stable performance.

2. Basic Features

Item	Feature	Remarks
Controller	EETI80H100	-
Channel	TX: 54 RX: 96	-
Power	5V	USB: 4.7V ~ 6.0V, Typical:5V
Communication	USB	USB: 2.0 Full Speed
Number of Touch point	10	-
O.S.	Windows/ Android/ Linux	plug and play
Power Consumption	1.Active Mode: Max.120mA @ USB Input 5V 2.Idle Mode: 90mA @ USB Input 5V 3.Sleep Mode: less than 1mA @ USB Input 5V

3. Mechanical Characteristics

Item	Specification	Unit
Viewing Area	1210.6(L)×685(W)	mm
Cover Lense O.D.	1269.44(L)×743.84(W)	mm

4. Optical Characteristics

Item		Specification
Transparency	Viewing Area	≧85%

5. Sensor Specification

Item			Specification	Unit
Stacked structure	Cover		3.0	mm
	LOCA		0.3	mm
	ITO		1.1	mm
	Sensor Glass
	ITO
Sensor Dimension	OD Size	X	1241.5	mm
		Y	712.3	mm

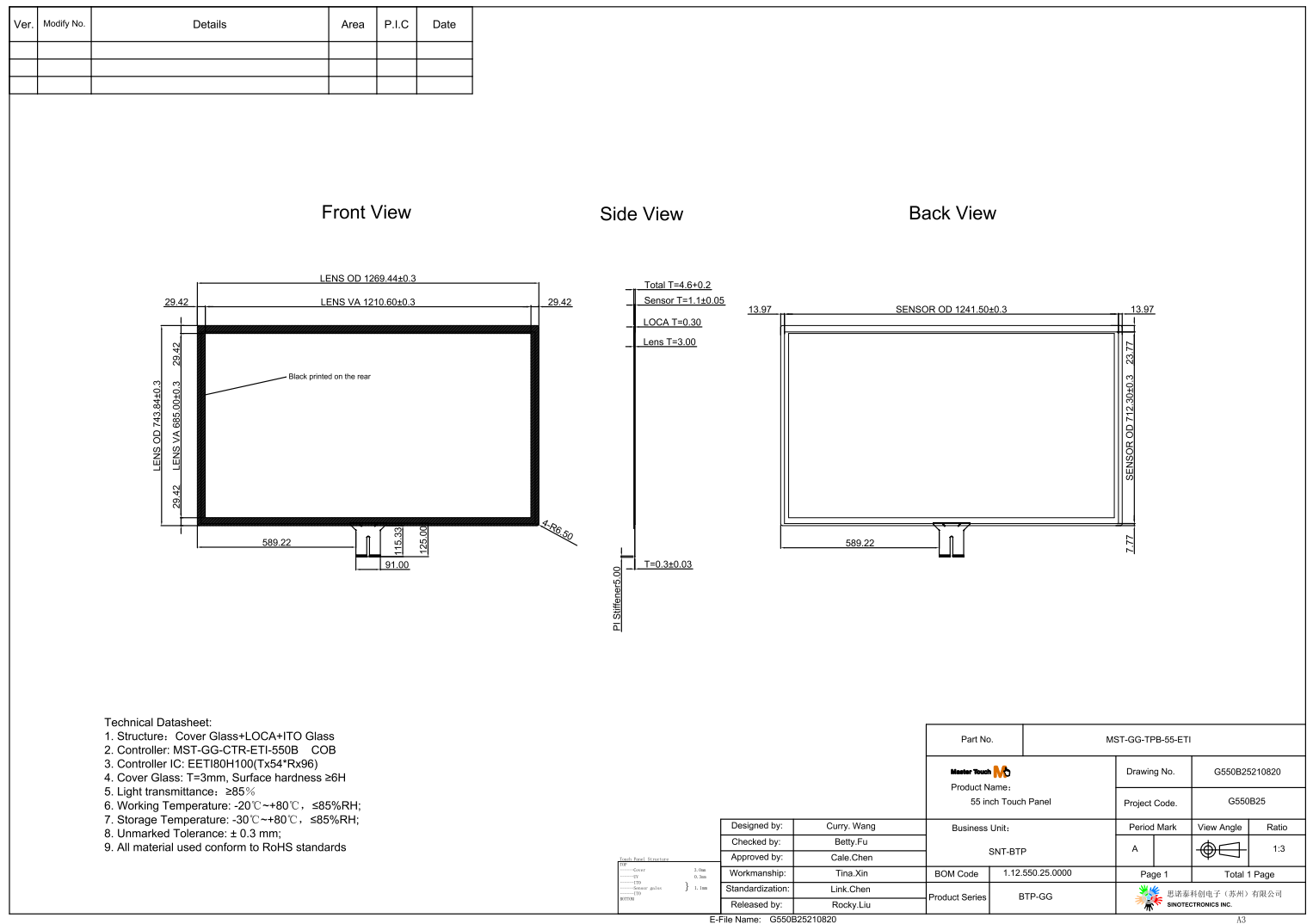

6. Drawing

7. Details

8. Advantages of G+G Structure

(1) High transmittance,>85%.

(2) Hard and anti-wear surface.The hardness is 6H.

(3) Excellent corrosion resistance.

(4) Sensitive touch and stable performance.

9. Reliablility Test

Reliability test report
Objects		□Raw material □New production process □Abnormal item □New product □Finished product □Sample □Experiment procedure and method □Others □Production line program
Purpose: to verify the applicability of the experimental product when being stored,transported and used under the extreme environmental conditions.
Experiment requirements: ①Before the experiment, make sure the functions of the product must be good,while the cosmetic may be good or non-good according to the purpose of the experiment. ②If it is necessary to do the experiment again,make sure all materials must be put in the same room for at least 2hrs and make sure that there is no water vapor on its surface. ③It is prohibited to open the door before we finish the whole experiment. ④The product is requested to be kept for more than 1 years,after the experiment.
No.	Items		Test condition	Criterion

1	High temperature and humidity test		1. Temperature: 60℃ 2. Humidity: 90%RH 3. Time: finished product 120H	Appearance test refer tostandard OK Function detection OK
2	Temperature Switching impact test		1.High temperature 2.Low temperature 3. 30 times in cycle	Appearance test refer tostandard OK Function detection OK
3	Salt spray test		1.Concentration: 5% NaCl solution 2.Temperature: 35℃ 3.Time: finished product 48H	Appearance test refer tostandard OK Function detection OK
4	High temperature storage test		1.Temperature: 80℃ 2.Time: 120H	Appearance test refer tostandard OK Function detection OK
5	Low temperature storage test		1.Temperature: -30℃ 2.Time: 120H	Appearance test refer tostandard OK Function detection OK
6	Red ink test		1. Room temperature 2. Time: 8H	1. No ink infiltration 2. All functions are good
7	Hand sweat test		1. Sweat PH=4.7 2. Time: 48H	Appearance test refer tostandard OK Function detection OK
8	Static electricity test		1. Air discharge: 8KV 2. Contact discharge: 6KV 3.Times: 10 times for each point	Appearance test refer tostandard OK Function detection OK

10. FAQ
