32 Inch Waterproof Multi GFF Touch Screen Panel for Industrial Control

1. Product Description

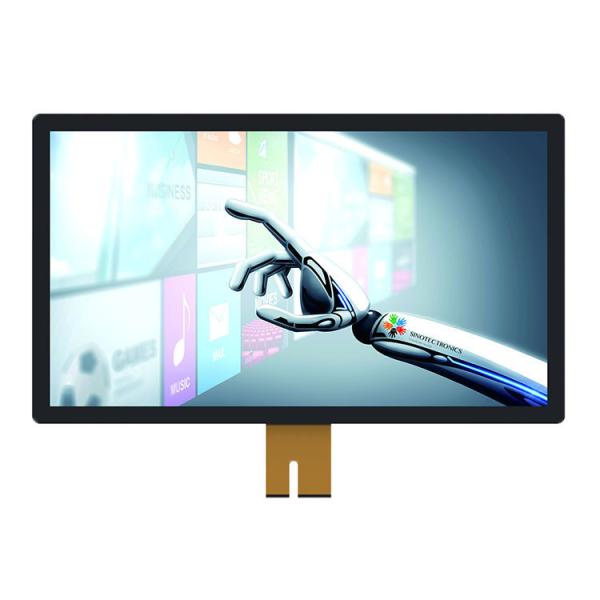

Master Touch GFF projected capacitive touch screen panel, via a process of sputtering an ITO pattern on a film substrate to make a film-sensor, perceive touch accurately through capacitance coupling. 17 to 43 inch Master Touch touch screen panel with water-proof, dust-proof, vandal proof function has the following advantages: light in transportation, long lifespan for both industrial and consuming level products application, accurate touch, fast response, etc.

2. Module Specification

2.1 Basic Information

Item	Specification	Unit
Screen Size	32	Inch
Viewing Area	699.4(L)×393.9(W)	mm
Cover lens O.D	809(L)×504(W)	mm

2.3 Optical Features

Item		Specification
Transparency	Viewing Area	≧85%

3. Sensor Specification

Item			Specification	Unit
Stacked structure	Cover		4.0	mm
	Top OCA		0.125	mm
	Film Sensor		0.125	mm
	Bottom OCA		0.125	mm
	Film Sensor		0.125	mm
Sensor Dimension	OD Size	X	715.32	mm
		Y	413.62	mm

4. Electrical Specification

Item	Type	Value	Unit	Remarks
Operating Temperature	-	-20 ~ +80	℃	Humidity 20%~85% RH
Storage Temperature	-	-30 ~ +80	℃	Humidity 20%~85% RH
ESD Requirement	ESD air requirement	±8	KV	Air
	ESD contact requirement	±6	KV	Touch

5. Test

Item		Specification	Result
Cover lens	Ball Drop	200g ± 2g 35cm	One drop test on each of the 5 selected points, No damage
	Hardness	Pencil: 6H Pressure: 1N/45°	Hardness ≧ 6H
	Warpage	By Gauge	Warpage 0.1% ≦ Length *
FPC/COF	Bending	Bending range0-180° 30times Electrical Function ok	-

6. Drawing

7. Details

8. Cosmetic Inspection

The following standard only applies to the visual areas. If the TP function is good, the non-visual appearance may negotiate to relax the standard. W=Width L=length D=Diameter GT=Glass thickness. If soft cloth which dips in alcohol can wipe besmirch, it does not apply to this appearance standards.

Inspection methods and conditions:

1)Inspection environment: Temperature:20-22 ℃; Humidity: 65 + 10% RH;

2)Inspector qualifications: The appearance of product must be inspect by a good eyesight inspector.

3) Inspection methods: The distance between inspector and product should be 30±2cm and putting a lamp 12 to 20 watts of cold white fluorescent lamp in the observation station of product.
