    USB Large Scale Infrared Touch Frame 84In LCD Screen Overlay


    84 Inch USB Interface Mature Technology Large-scale Infrared Touch Frame


    1. Product Description


    With the continuous development of touch technology, more and more industries begin to use large-scale infrared touch frame screen for display. The market demand also changes from single picture display to super large-scale, face to face interaction.


    Now, in the application of touch technology in large-scale splicing screen, only infrared touch technology is fast in response. And MST large-size IR touch frame can be used on the surface of splicing screen. It is also superior to other touch technologies in sensitivity and touch force, and the product has the advantages of affordable cost, mature technology and stable product performance. At last, it is simple and convenient after-sales maintenance.


    2. Basic Specification


    2.1 Touch Panel


    Size84''
    Dimension19mm width (with frame.without glass);
    24-52” with 8.7mm thickness, 55”-110” with 9.5mm thickess
    Number of Touch Points2, 4, 6, 10, 12, 16, 32, 40(optional)
    Minimum Touch Object5mm
    Touch Activation ForceNo minimum touch pressure required
    Touch DurabilityUnlimited
    Resolution32768*32768
    Driver FreeHID* compatible, up to 40 touch points
    Linearity Deviation±1mm
    Fault ToleranceWorkable even 75% sensors are damaged
    Frames per SecondUp to 450 fps
    Typical Response Time3-10ms
    Light Transmission100% without glass
    Operating SystemsWindows®7, Windows®8,Windows®10, Vista, XP, Mac® OS, Linux, Android
    ProtocolsHID, TUIO, Flash
    Re-developmentProvide free SDK, support C/C++, C#, Java etc.
    Warranty2 years limited warranty on parts and labor
    2.2 Electrical Characteristics
    Power SupplySingle USB Connection
    Low Power ConsumptionOperating ≤2W, Stand By ≤ 250mW
    ESDPer EN61000-4-21995; Level 4
    Contact Discharge 8kV,
    Air Discharge 15kV
    15kV on USB Connector pins
    2.3 Environment Characteristics
    TemperatureOperating Temperature: -20°C~70°C
    Storage Temperature: -40°C~85°C
    HumidityOperating Humidity: 10%~90%RH(Non-condensing)
    Storage Humidity: 10%~90%RH
    CertificationFC, CE, RoHS

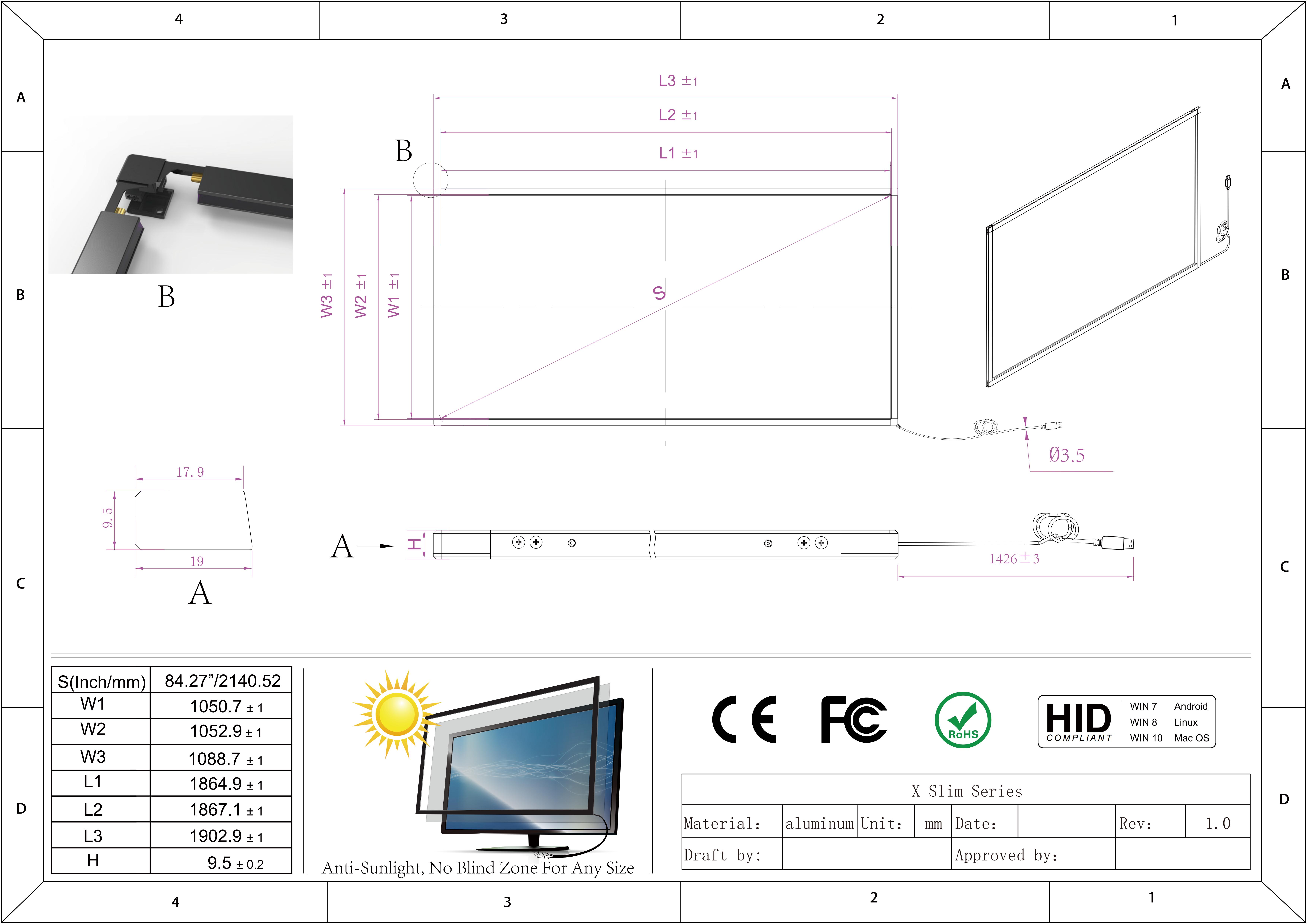

    3. Drawing
    4. Advantages
    • Free of scratches – since the LCD monitor is protected by glass overlay, so you can rest assured that there will no scratches problems.
    • More flexible in customizing screen sizes – by adjusting the numbers of LEDs and photodetectors embedded in the overlay frame, you can fit any custom-made monitor with an infrared touch interface.
    • Maintenance – there is no adhesive substance between the monitor and overlay, so you can disassemble the two parts freely by releasing few screws when doing regular maintenance, such as clean the surface, wipe dust.
    • Clear images – compared with many camera or projector-based systems, equipments with IR touch screens often adopt backlight LED. So, wherever lighting environment they perform in, they can provide clear images to the audience.
    5. Applications
    6. Details
    7. FAQ
