17 Inch Anti-finger Print Pcap GFF Structure Touch Panel Sputtering an ITO Pattern

1. Product Description

Master Touch GFF projected capacitive touch screen panel, via a process of sputtering an ITO pattern on a film substrate to make a film-sensor, perceive touch accurately through capacitance coupling. 17 to 43 inch Master Touch touch screen panel with water-proof, dust-proof, vandal proof function has the following advantages: light in transportation, long lifespan for both industrial and consuming level products application, accurate touch, fast response, etc.

2. Module Specification

2.1 Basic Information

Item	Specification	Unit
Screen Size	17	Inch
Viewing Area	340.12(L)×272.54(W)	mm
Cover lens O.D	356.12(L)×298.14(W)	mm

2.3 Optical Features

Item		Specification
Transparency	Viewing Area	≧85%

3. Sensor Specification

Item			Specification	Unit
Stacked structure	Cover		2.0	mm
	Top OCA		0.125	mm
	Film Sensor		0.125	mm
	Bottom OCA		0.125	mm
	Film Sensor		0.125	mm
Sensor Dimension	OD Size	X	355.12	mm
		Y	297.14	mm

4. Electrical Specification

Item	Type	Value	Unit	Remarks
Operating Temperature	-	-20 ~ +80	℃	Humidity 20%~85% RH
Storage Temperature	-	-30 ~ +80	℃	Humidity 20%~85% RH
ESD Requirement	ESD air requirement	±8	KV	Air
	ESD contact requirement	±6	KV	Touch

5. Function Test

5.1 Inspection methods and conditions

Connect jigs (Supplier provide test jigs and test software) to a computer; test touch function of products in normal electrical characteristics.

5.2 Inspection standards

Don't allow any function abnormalities.

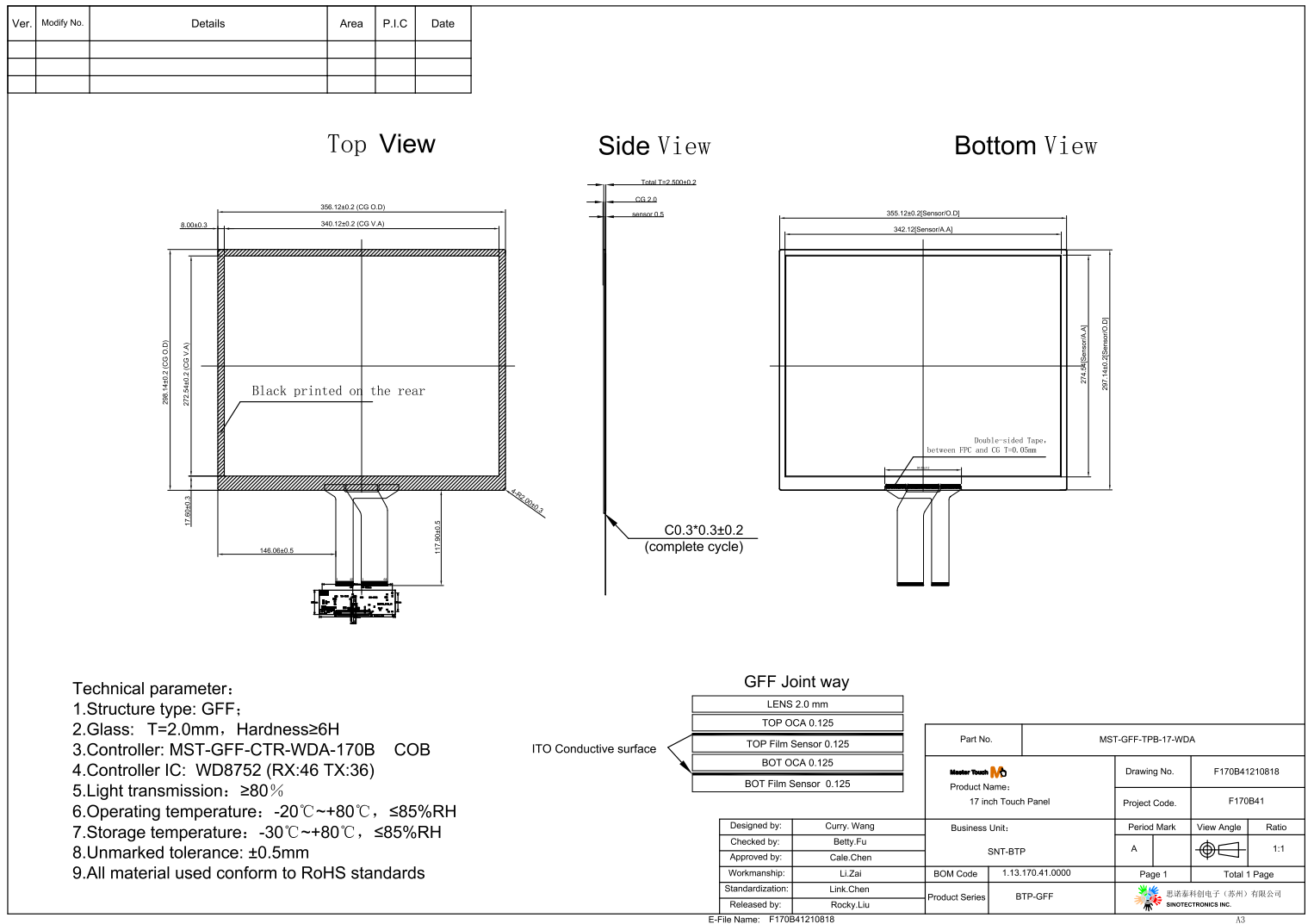

6. Drawing

7. Details

8. Use Cautions

8.1 Storage Cautions

Storage products must according to the temperature and humidity of product specification and do not accept direct sunlight or heavy weight.

8.2 Move Cautions

Must maintain clear clarity of sample, so please wear fingerstalls or gloves before you contact product. Gloves and mask will have stains and hold product around please when you hold the product. Avoid causing the lead loosing, please don't take the lead when you take out the product.

8.3 Combination Install Cautions

1. Don't put the extra tension to the product. Because the down-lead connection uses the hot pressing combination, do not use extra tension.
2. Installation combined, please don't pull FPC heavily, because pull heavily will make the FPC separated from product.
3. Please don't paste or install other items on the FPC. Such as: pasting a layer FILM or metal plate on the FPC, Because these add-ons will impose an extra pressure on the top of FPC, thus leading to the inner side of FPC become flexible.
4. If there is an aeration slot, when you design the product structure you need notice accessories of a product, they can’t have any liquid and powder.
5. In order not to make the T/P surface pressure, so the distance between the cabinet and our company’s T/P combination clearance shall be maintained 0.2mm-0.5mm.
6. As it will make serious damage on the transparent electrodes to operate in the area of the other than the drive area, we suggest that the design cabinet shall cover the edge of thedrive area for avoiding operating outside the area which would reduce machine life.

8.4 Operation Cautions

1. Do not use sharp objects touch. Please with finger or conductive pen touch
2. After long-term use, please use alcohol to remove product surface uncleanness.
