60Hz USB 15 Inch Touch Panel Assembly 1024*768px Multi Touch Panel

Ask Lasest Price
Brand Name :	Master Touch
Model Number :	MST-TMS-15-DV
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50000~100000 pieces/Month
Delivery Time :	5-8 days

Add to Cart

Product Details
Company Profile

60Hz USB 15 Inch Touch Panel Assembly 1024*768px Multi Touch Panel

Master Touch Multi Touch 15 Inch USB Interface Tape Bonding Touch Panel Assembly

1. Product Description

Master Touch 15 inch Touch Panel+LCM (Tape Bonding) is the lamination of touch panel and the LCD module. That is, simply use glue to laminate the touch screen and the four sides of the LCD screen, so there will be an air layer between them. The TP assembly attached by the frame bonding technology is thick, and the dust and water vapor are easy to enter the gap between the touch panel and the display. In addition, this type of lamination will make light reflection on screen obvious, so the display effect is much worse than that of optical bonding. But the advantage is that the lamination is simpler, the process is more mature, the yield is more stable, and the cost is lower.

2. Genaral Specification

2.1 LCD

Model	DV150X0M-N10
Size	15 inch
Resolution	1024(RGB)×768 [XGA] 85PPI
Luminance	350 (Typ.)
Contrast	1000 : 1 (Typ.)
Viewing Angles	89/89/89/89 (Typ.)(CR≥10)
Signal System	LVDS (1 ch, 8-bit) , terminal , 20 pins
Operating frequency	60Hz
Driving Voltage	3.3 V (Typ.)
TFT thickness	10mm

2.2 Touch Panel

Outline Dimension	326.5*253.5	mm
View Area	305.13*229.1 (15 inch)	mm
TP thickness	4.3	mm
Total	15.3	mm
Touch IC	EETI80W46	--
Number of touchpoint	10	points
Number of button	--	-
Interface information driven plate	USB	-
The active information	--	--
The type of Bonding with LCD	Frame bonding
Operation Temperature	-20℃~70℃	℃
Storage (cannot exceed 6 months)	Temperature: 23±3℃ (Before installation) Humidity:40%~70%RH	℃
Storage (cannot exceed 6 months)	Temperature: -30~80℃ (After installation)	℃

2.3 Optical Spec.

Item	Content
Transparency	85±10%

2.4 Electrical Spec.

ESD Touch Side (Touch)	4kv
ESD Touch Side (Air)	8kv

3. Reliability

Item	Specifications	Remark
High Temperature Operation	70ºC, 48hrs	--
Low Temperature Operation	-20 ºC, 48hrs	Non-condensing
Operating Temperature/ Humidity	60ºC/90%RH, 500hrs	Non-condensing
Thermal Shock	-30 ~ 80℃, 60 mins/cycle, total 48 cycles	--

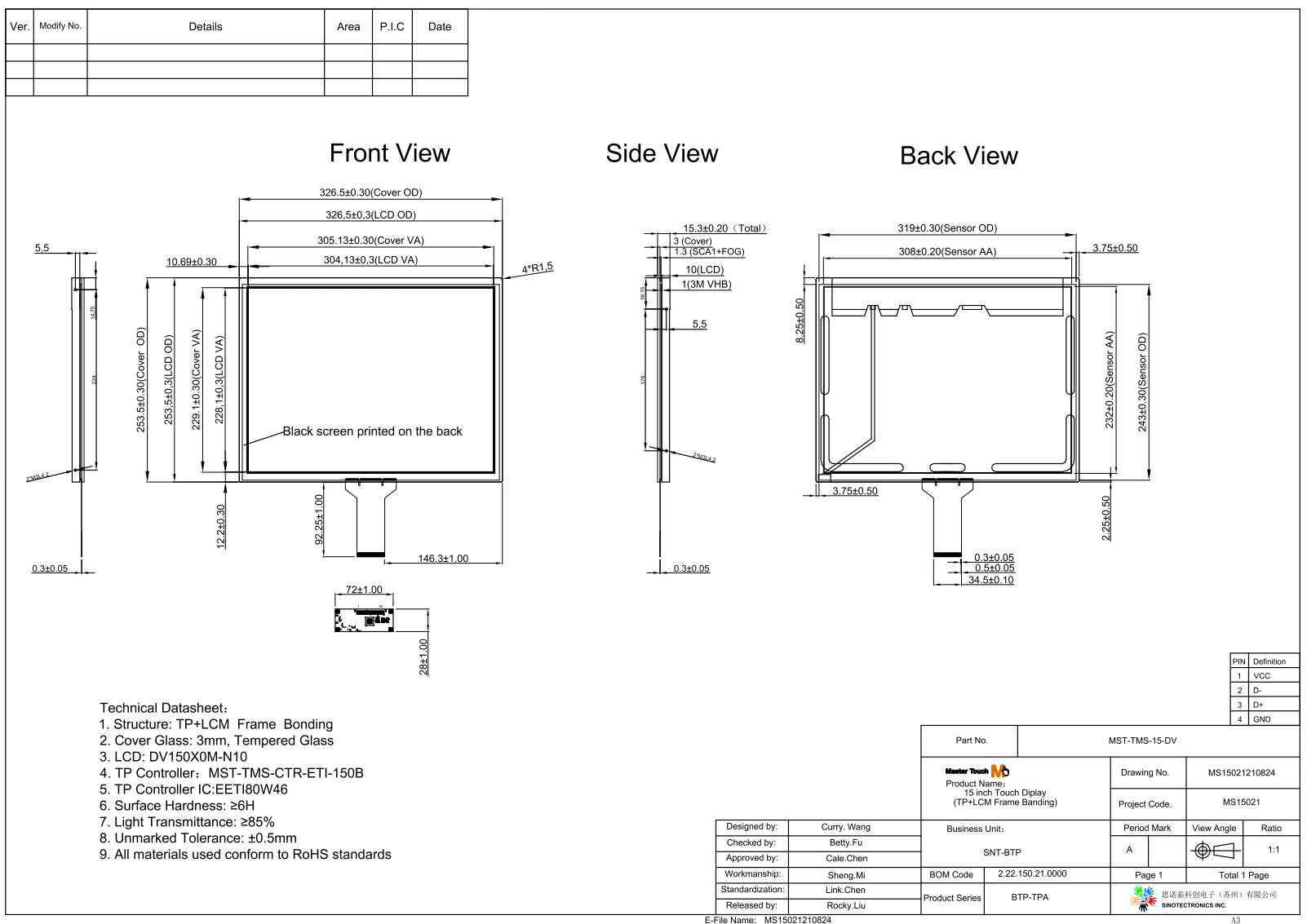

4. Drawing

5. Details

6. Inspection

Equipment/materials: light box, ion fan, humidifier, film card, alcohol/ethyl acetate, finger cover, dust-free cloth, Vernier/digital caliper.

Inspection environment: 30cm ± 5cm from the product, temperature: 22 ± 2 ℃; humidity: 40% ~ 70% RH; cleanliness: Level 10000.

Inspection angle: vertical rotation angle: ± 30 °, from top to bottom; horizontal rotation angle: ± 30 °, from left to right.

Inspection illuminance: fluorescent lamp inspection area illuminance: 150

0-1800lux; table lamp inspection area illuminance: 1500-1800lux; It is convenient for internal uniform illumination requirements.

Background color: Black/white.

Inspection time: the inspection time of one piece of product shall not exceed 15 seconds.

7. FAQ
