10 Points EETI Controller Outdoor LCD Display Screen 12.1'' For Advertisement

Master Touch 12.1'' 10 Points EETI Controller Outdoor LCD Display Screen

1. Product Description

Master Touch 12.1 inch outdoor LCD display screen is the lamination of touch panel and the LCD module through optical bonding technology with OCA or LOCA (Whether OCA or LOCA is chosen depends of the application of the product or the LCD used.) that fills air gaps between components in LCD displays and the touch panel.

Optically clear adhesives are contaminant free resulting in improved bubble resistance on glass or plastic film cover laminations exposed to high temperature and high humidity: a common requirement in automotive display screen fabrication. Optical clear adhesives are ideal for LCD flat panel displays, touch screens, transparent graphic overlays, and other devices requiring an optically clear bond.

2. Genaral Specification

2.1 LCD

Model	EV121X0M-N10
Size	12.1 inch
Resolution	1024(RGB)×768 [XGA] 105PPI
Luminance	500 (Typ.)
Contrast	1200 : 1 (Typ.)
Viewing Angles	88/88/88/88 (Typ.)(CR≥10)
Signal System	LVDS (1 ch, 8-bit), 20 pin
Operating Frequency	60Hz
Driving Voltage	3.3V (Typ.)
TFT Thickness	8.75mm

2.2 Touch Panel

Outline Dimension	260.5*204	mm
View Area	245.5*184.3(12.1 inch)	mm
TP Thickness	2.9	mm
Total	12.25	mm
Touch IC	EETI80W46	--
Number of touchpoint	10	points
Number of button	--	-
Interface information driven plate	USB	-
The active information	--	--
The type of Bonding with LCD	Optical bonding
Operation Temperature	-20℃~70℃	℃
Storage (cannot exceed 6 months)	Temperature: 23±3℃ (Before installation) Humidity:40%~70%RH	℃
Storage (cannot exceed 6 months)	Temperature: -30~80℃ (After installation)	℃

2.3 Optical Spec.

Item	Content
Transparency	85±10%

2.4 Electrical Spec.

ESD Touch Side (Touch)	4kv
ESD Touch Side (Air)	8kv

3. Reliability

High Temperature Operation	70ºC, 48hrs	--
Low Temperature Operation	-20 ºC, 48hrs	Non-condensing
Operating Temperature/ Humidity	60ºC/90%RH, 500hrs	Non-condensing
Thermal Shock	-30 ~ 80℃, 60 mins/cycle, total 48 cycles	--

4. Drawing

5. Notice

Due to the system of capacitive touch screen is made of glass, Please do not strong impact, The impact,Or Fall from height;

Please do not stack up TPs. Don’t load on TP;

Please do not put the capacitive touch screen itself or FPC direct contact with metal material;

When assembling, please do not bend or strength to pull FPC, Avoid to cause the injured;

When assembling, please do not touch ink face of back of TP, Avoid to scratches;

When assembling, please do not contact the visual area, if have dirty in VA, Recommend the use of anhydrous ethanol to clean;

Operation of the capacitive touch screen, Use finger or conductive touch pen, please; must avoid high voltage and static electricity.

6. Details

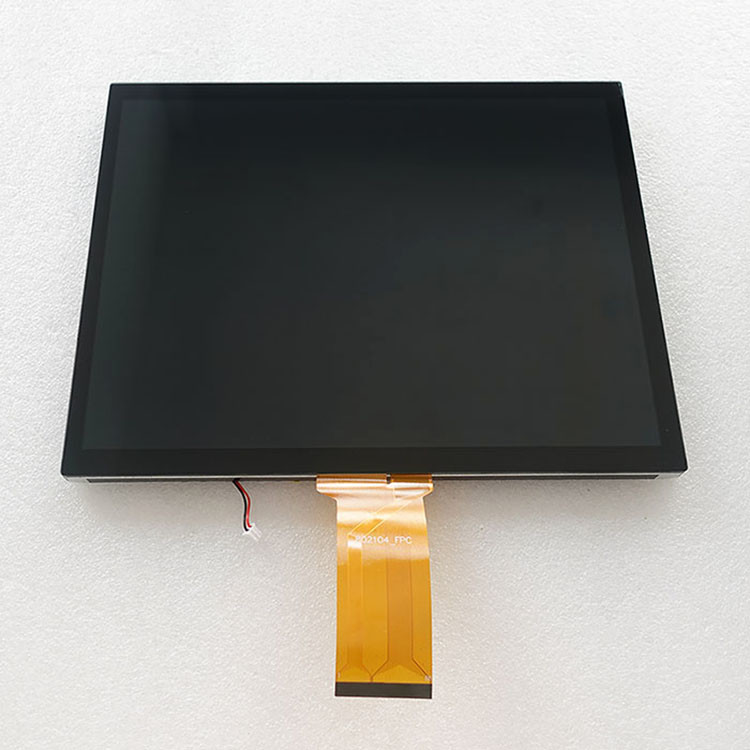

10 Points EETI Controller Outdoor LCD Display Screen 12.1'' For Advertisement

7. FAQ
