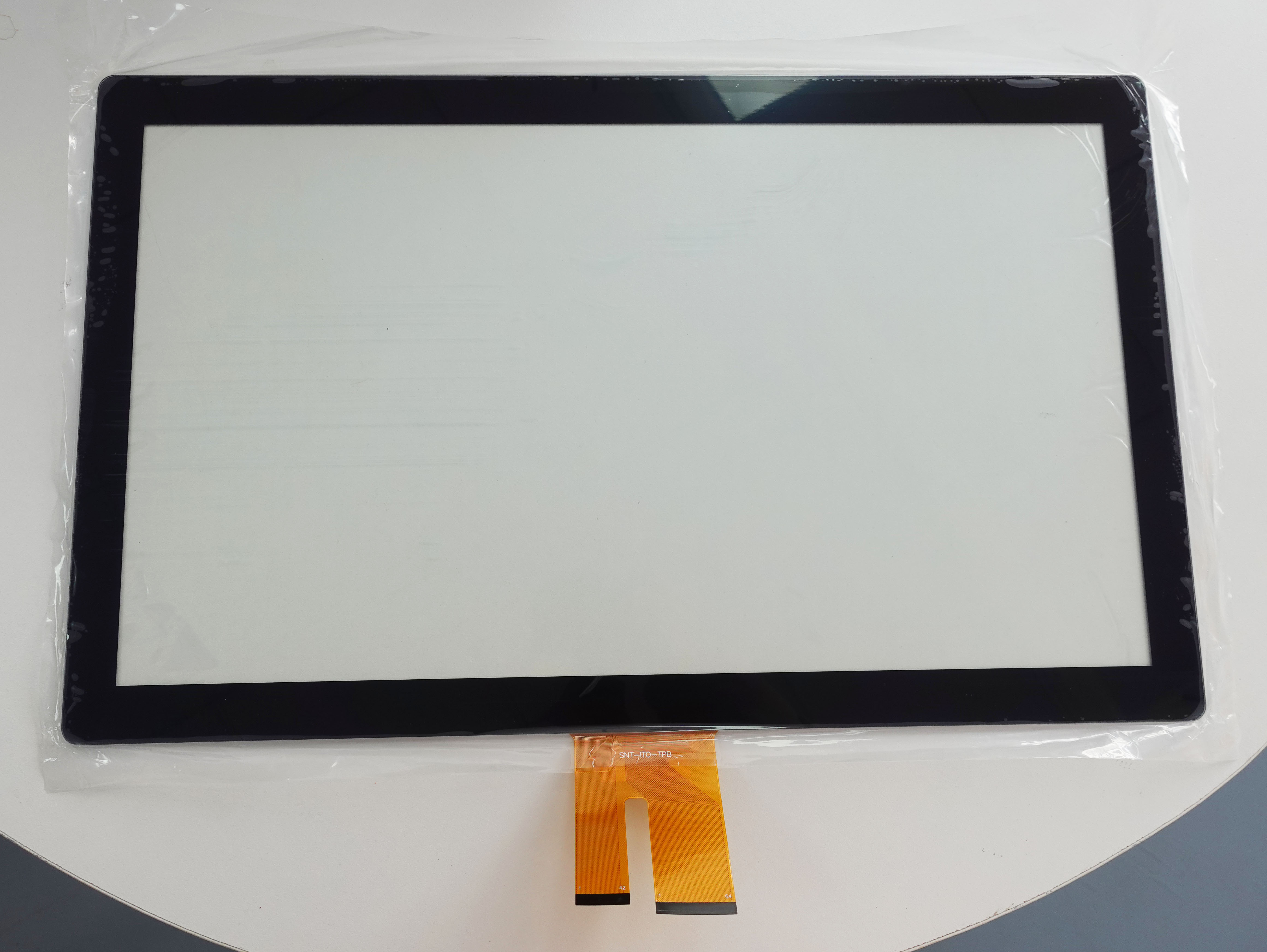

345.2x194.6mm 15.6'' Interactive Touch Screen Panel With ILI2510 Controller

Master Touch 15.6 Inch Interactive Touch Screen Panel Passing Reliability Test

1. Product Description

MST G+G Pcap (projected capacitive) touch panel, via a process of sputtering an ITO pattern on a glass substrate to make a G-sensor, then laminate 2 layers of glass together, perceive touch accurately via capacitance coupling.

Capacitive touch screen has following outstanding features:

Response speed fast, smooth touch
Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings
Any point can withstand more than 50 million times touch
Operating systems strong compatibility
Intelligent automatic calibration, use forinternal / external variety of environment
Long life, low maintenance costs

2. Advantages of G+G Structure

(1) High transmittance,>85%.

(2) Hard and anti-wear surface.The hardness is 6H.

(3) Excellent corrosion resistance.

(4) Sensitive touch and stable performance.

3. Basic Features

Item	Feature	Remarks
Controller	ILI2510	-
Channel	TX: 40 RX: 52	-
Power	5V	USB: 4.7V ~ 6.0V, Typical:5V
Communication	USB	USB: 2.0 Full Speed
Number of Touch point	10	-
O.S.	Windows/ Android/ Linux	plug and play
Power Consumption	1.Active Mode: Max.120mA @ USB Input 5V 2.Idle Mode: 90mA @ USB Input 5V 3.Sleep Mode: less than 1mA @ USB Input 5V

4. Mechanical Characteristics

Item	Specification	Unit
Viewing Area	345.2(L)×194.6(W)	mm
Cover Lense O.D.	383.2(L)×232.6(W)	mm

5. Optical Characteristics

Item		Specification
Transparency	Viewing Area	≧85%

6. Sensor Specification

Item			Specification	Unit
Stacked structure	Cover		3.0	mm
	LOCA		0.2	mm
	ITO		0.7	mm
	Sensor Glass
	ITO
Sensor Dimension	OD Size	X	358	mm
		Y	210	mm

7. Drawing

8. Details

9. Reliablility Test

Reliability test report
Objects		□Raw material □New production process □Abnormal item □New product □Finished product □Sample □Experiment procedure and method □Others □Production line program
Purpose: to verify the applicability of the experimental product when being stored,transported and used under the extreme environmental conditions.
Experiment requirements: ①Before the experiment, make sure the functions of the product must be good,while the cosmetic may be good or non-good according to the purpose of the experiment. ②If it is necessary to do the experiment again,make sure all materials must be put in the same room for at least 2hrs and make sure that there is no water vapor on its surface. ③It is prohibited to open the door before we finish the whole experiment. ④The product is requested to be kept for more than 1 years,after the experiment.
No.	Items		Test condition	Criterion

1	High temperature and humidity test		1. Temperature: 60℃ 2. Humidity: 90%RH 3. Time: finished product 120H	Appearance test refer tostandard OK Function detection OK
2	Temperature Switching impact test		1.High temperature 2.Low temperature 3. 30 times in cycle	Appearance test refer tostandard OK Function detection OK
3	Salt spray test		1.Concentration: 5% NaCl solution 2.Temperature: 35℃ 3.Time: finished product 48H	Appearance test refer tostandard OK Function detection OK
4	High temperature storage test		1.Temperature: 80℃ 2.Time: 120H	Appearance test refer tostandard OK Function detection OK
5	Low temperature storage test		1.Temperature: -30℃ 2.Time: 120H	Appearance test refer tostandard OK Function detection OK
6	Red ink test		1. Room temperature 2. Time: 8H	1. No ink infiltration 2. All functions are good
7	Hand sweat test		1. Sweat PH=4.7 2. Time: 48H	Appearance test refer tostandard OK Function detection OK
8	Static electricity test		1. Air discharge: 8KV 2. Contact discharge: 6KV 3.Times: 10 times for each point	Appearance test refer tostandard OK Function detection OK
