WLED Direct Illumination Type Stretched Bar Display 88 Inch HDMI Input Port

Ask Lasest Price
Brand Name :	Sinotectronics
Model Number :	IPD-CN880TXP02
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50000~100000pcs/Month
Delivery Time :	5-8 days

Add to Cart

Product Details
Company Profile

WLED Direct Illumination Type Stretched Bar Display 88 Inch HDMI Input Port

88 Inch HDMI Input Port WLED Direct Illumination-type Stretched Bar Display

1. Product Description

Sinotectronics Bar Type Display is available in a variety of sizes, configurations, and brightness options, making them a perfect versatile solution for industrial and commercial advertising, especially in areas with high traffic and restricted, atypical shape space. This Bar Type Displays are utilized in retail, advertising, public transportation, commercial buildings, quick-service restaurants, and other applications.

2. Technical Datasheet

System	CPU	T972 Quad-core A55, Main frequency up to 1.9 GHz
	RAM	2G
	ROM	8G
	Operation System	Android 9.0
Display	Diagonal Size (inch)	87.8 inches(2230.2mm) diagonal
	Backlight Form	WLED Direct Illumination-type
	Resolution	3840×1080
	Color	10bit-1.07Billon colors
	Viewing Angle	89/89/89/899(Min). ( CR≥10)
	Response Time	8(Typ.) (G to G) ms
	Contrast Ratio	1100:1(Typ.) (Transmissive)
	Brightness	700cd/㎡ (Typ.)
	Dot Pitch (mm)	0.1865(H)x0.554(V)
	Pixel Pitch (mm)	0.554(H)x0.554(V)
	View Area (mm)	2148.48(H)x598.32(V)
	Optical Mode	IPS, Normally Black, Transmissive
Network	WiFi	802.11b/g/n/ac,BT5.0
Network	Ethernet	10M/100M Adaptive Ethernet
Port Information	USB	USB*2
	HDMI IN	HDMI IN*1 support HDMI 2.1 4kx2k@60Hz input
	RJ45	RJ45*1
	AV IN	AV IN*1
	TF Cord	TF Cord*1
	Reset Button	1
Power	Power Input	AC100V-240V, 50/60Hz
	Power Consumption	480W
	Energy Efficiency	≥1.05cd/W
Operating environment	Operating Temperature	0℃～40℃
Operating environment	Operating Humidity	10～90% RH (No Condensation)
Physical Characteristics	Body Color	Black Matte
	Body Material	SGCC
	Net Weight	40KG
	Gross Weight	55KG
	Outline Dimension(mm)	2158.3×611.3×84.4
Others	AC power cord 1.8m

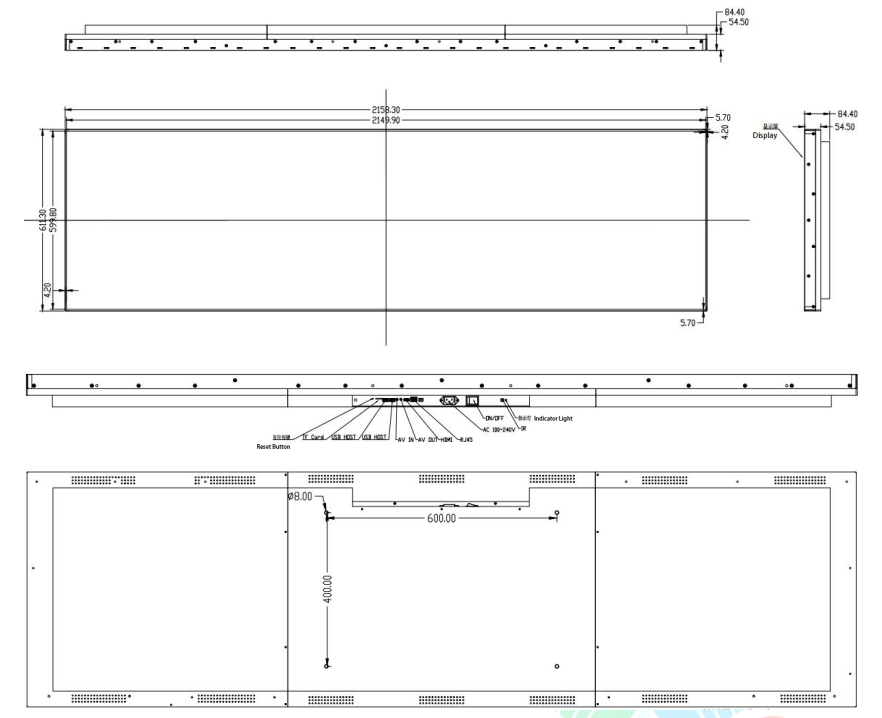

3. Drawing

Notice: When installing the professional display, please be sure to use the method that meets the safe installation of this product (wall mounted / floor stand).

4. Details

5. FAQ
